鐵箍桶數控機組CNC Iron hoop Paper Drum Machines

數量



產品介紹

1. 簡介 Brief Introduction

此機器主要用于生產紙桶鐵箍，由PLC和變頻器控制，切割方式為油缸切斷，壓力最大70kg/cm2
This machine is used for rolling lock-ring for paper drum. It is controlled by PLC and Inverter, cutting mode is hydraulic, the max pressure70kg/cm2.

2.技術參數 Technical Specification

型號 Model	QZDZG-600
適用紙桶直徑 Paper Tube Diameter	φ200mm-φ700mm
功能 Function	自動軋制封閉器Rolling locking ring
料寬 Width of Material	380.5mm, 320.7mm, 34*0.7mm and customized specification
生產能力 Speed	5000只/小時 500pcs/hour
加工精度 Machining Precision	±0.5mm
控制系統 Control System	可編程控制器XC3-14T-E，文本顯示器0P325-A、變頻器3V055LGX--45.5KW PLC, Inverter
切料方式 Cutting mode	油缸切斷 hydraulic
最大壓力 Max.pressure	70Kg/cm²
總重量 Weight	~600KG

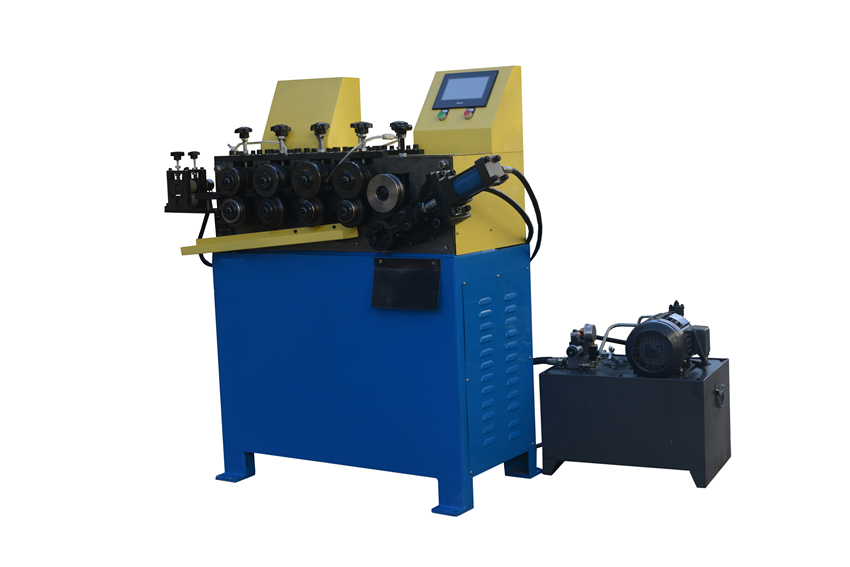

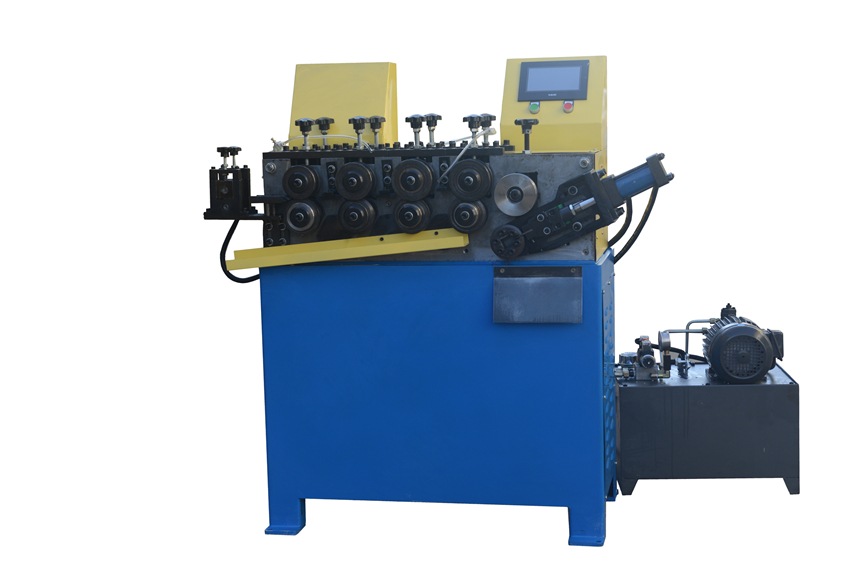

3.機器圖片 Machine Image

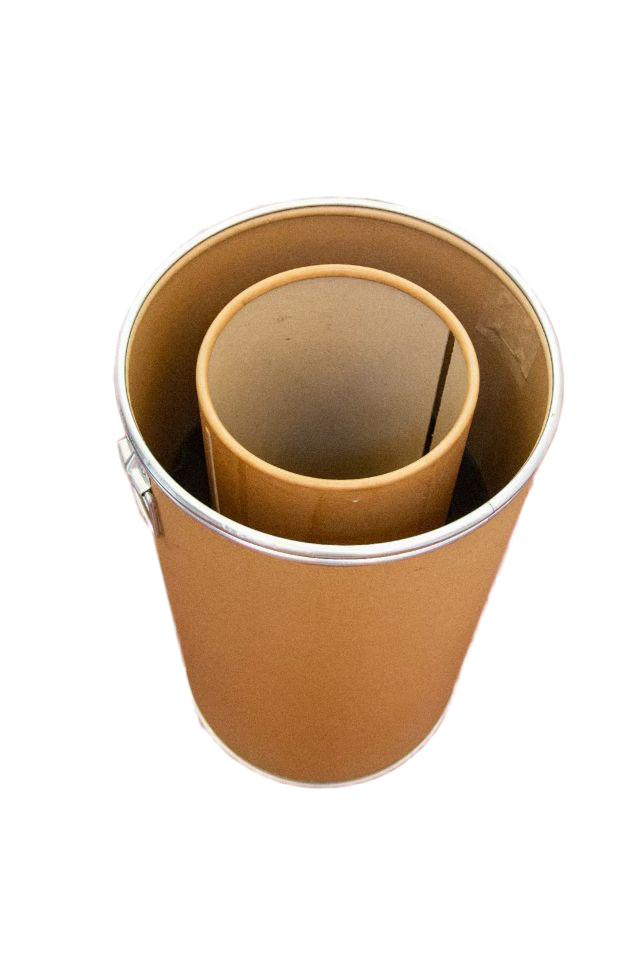

4.成品 Finished Product

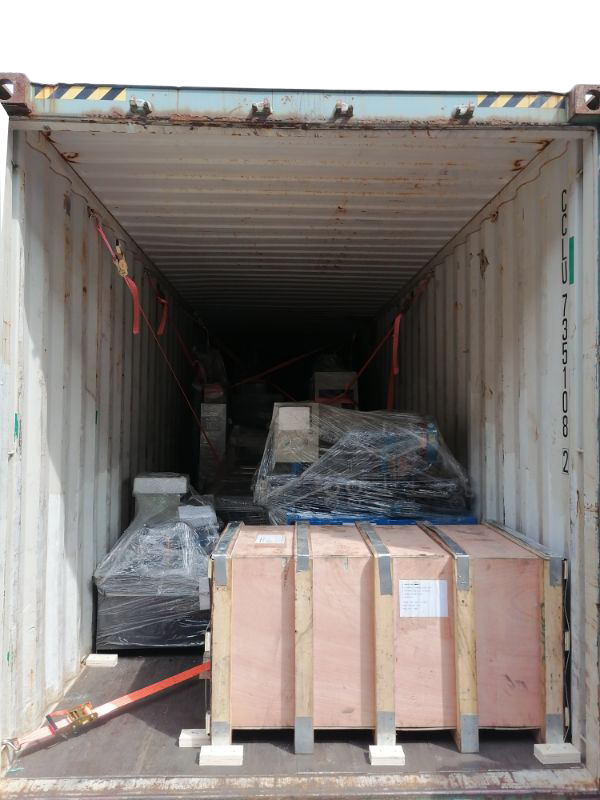

5.包裝 Packing & Delivery

We testing every machine before shipment 裝運前試機
The machine will be packed and shipped by container 適用于海運的包裝
The machine will be packed by film in standard 纏繞膜包裝
Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing 客戶可根據自身需求選擇包裝方式
